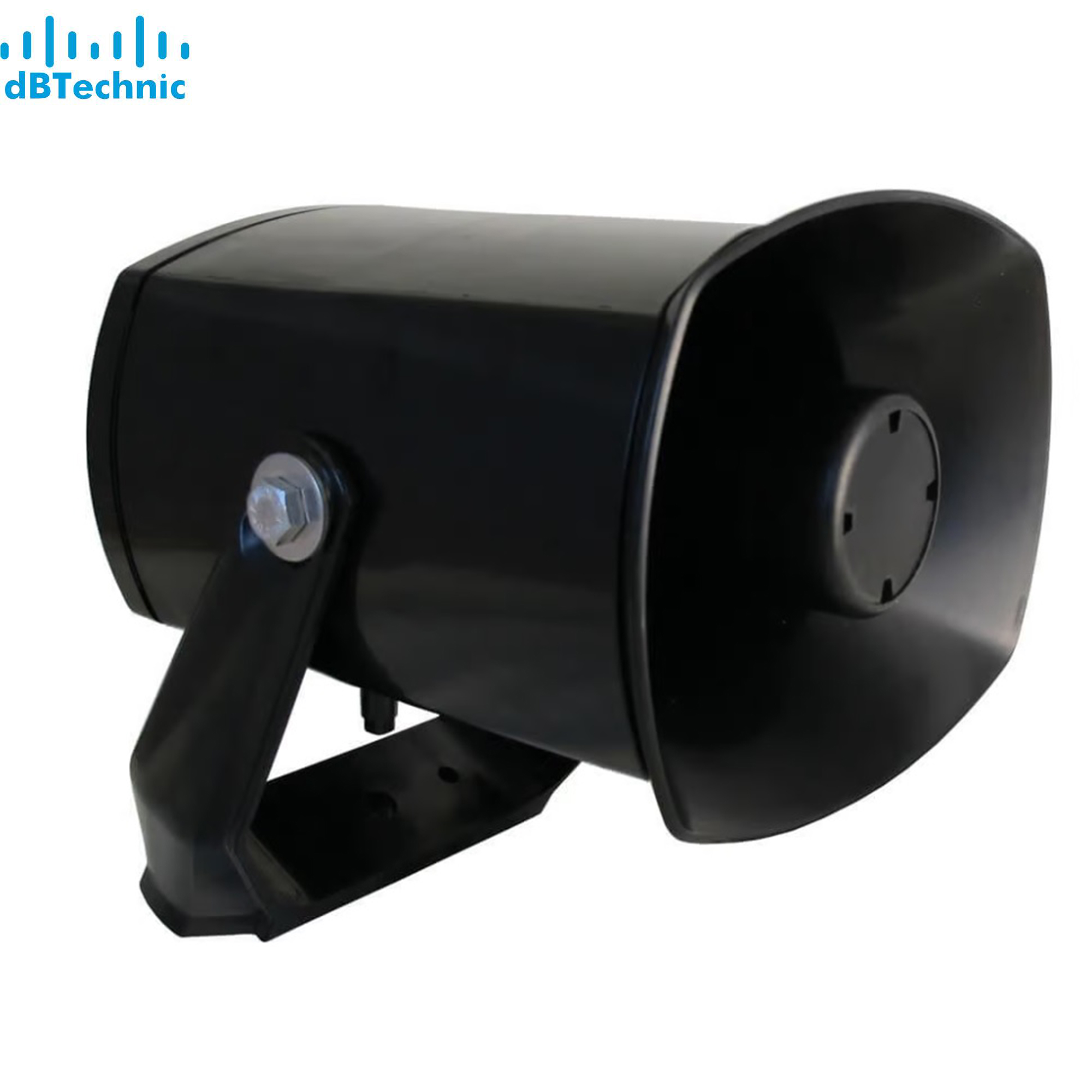

DNH DSP-15EExmN(T)
25W Ex plastic horn speaker.This versatile model can be ordered with different transformers for more tappings and power ratings. DSP-15 EExmN(T) is light and has M20 entries in the back lid for easy cable mounting. Extra termination space for loop in loop out purpose as standard. Now also with certificate for USA and Canada.
Material / Color: Anti-static PA / Black
Mounting: Bracket
Termination: e-chamber, push terminals
Weight w/transformer: 2,2 kg
IP-rating: 66 / 67
Max. / min. amb. Temp: 60°C / -50°C
Rated / max. power: 25 W / 30 W
SPL 1W/1m: 106 dB (IIB) 104 dB (IIC)
SPL rated power: 118 dB (IIB) 115 dB (IIC)
Effective freq. range: 380 – 8000 Hz (IIB) 450-7000 Hz (IIC)
Dispersion (-6dB) 1kHz / 4kHz: 120° / 37° (IIB) 105° / 35 (IIC)
II 2 G Ex d e mb IIB+H2 T4 Gb
II 2 G Ex d e mb IIC T4 Gb
II 2 D Ex tb IIIC T105
اسپیکر ضد انفجار 25 وات
برند DNH نروژ
دارای استانداردهای ATEX / IECEX / IP66/67
